Add text labels to a marimekko plot

Usage

geom_marimekko_text(
  mapping = NULL,
  data = NULL,
  position = "identity",
  ...,
  size = 3.5,
  colour = "white",
  na.rm = FALSE,
  show.legend = FALSE,
  inherit.aes = FALSE
)

Arguments

mapping: Set of aesthetic mappings. Only label is required. Use ggplot2::after_stat() for computed variables.
data: A data frame. Default NULL (uses plot data; tile positions come from geom_marimekko()).
position: Position adjustment. Default "identity".
...: Additional arguments passed to the layer.
size: Text size. Default 3.5.
colour: Text colour. Default "white" for text, "black" for labels.
na.rm: Logical. Remove missing values. Default FALSE.
show.legend: Logical. Show legend. Default FALSE.
inherit.aes: Logical. Inherit aesthetics. Default FALSE.

Value

A ggplot2 layer.

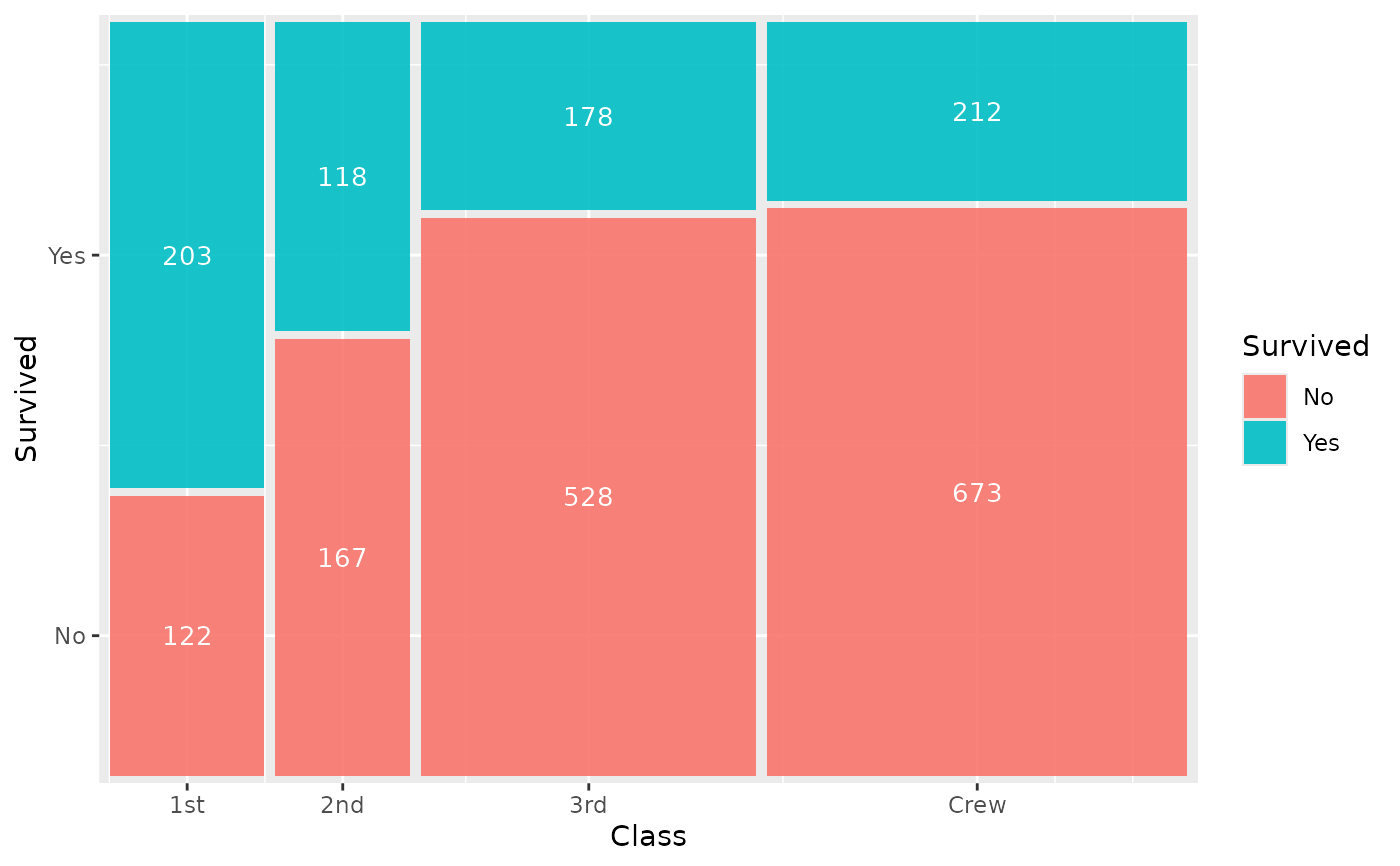

Examples

library(ggplot2)

titanic <- as.data.frame(Titanic)
ggplot(titanic) +
  geom_marimekko(
    aes(fill = Survived, weight = Freq),
    formula = ~ Class | Survived
  ) +
  geom_marimekko_text(aes(label = after_stat(weight)))
